The Forge

1178 kVA Connected Electrical Load
780 kW Diversified System Load
61% Diversity Optimised Load Factor
400 V System Three-Phase Distribution

Electrical Services Design.

The Forge is a commercial development in Woking, Surrey, involving the major refurbishment of an existing building to deliver a flexible, multi-tenant-ready environment. The project required a robust and coordinated electrical infrastructure to support specialist systems, ensure compliance, and enable efficient power distribution across the building.

Salvis provided full electrical services design, including electrical distribution, general and emergency lighting, coordination of specialist systems, and 3D Revit modelling to support design integration and delivery.

The Challenge:

→
A large connected load (1178 kVA) required careful system sizing and load management.
→
A multi-tenant distribution strategy needed to align with a BNO-fed network.
→
The original rising busbar approach was not viable, requiring a redesign of the distribution strategy.
→
Coordination was required across lighting design, security systems, and mechanical power supplies.
→
Electrical containment routes had to be fully integrated with the architectural layout and other building services.

The Solution:

→
Designed a three-phase 400 V electrical distribution system to serve the entire building.
→
Applied ~61% diversity to reduce demand and optimise system sizing.
→
Implemented a submain distribution with Ryefield panels to suit the BNO network.
→
Developed coordinated layouts for containment, power distribution, and lighting systems.
→
Delivered general and emergency lighting design in line with project requirements.
→
Integrated specialist systems and controls into the overall electrical infrastructure.
→
Utilised 3D Revit modelling to coordinate services and minimise clashes.
→
Produced clear, structured design drawings and documentation for client approval.

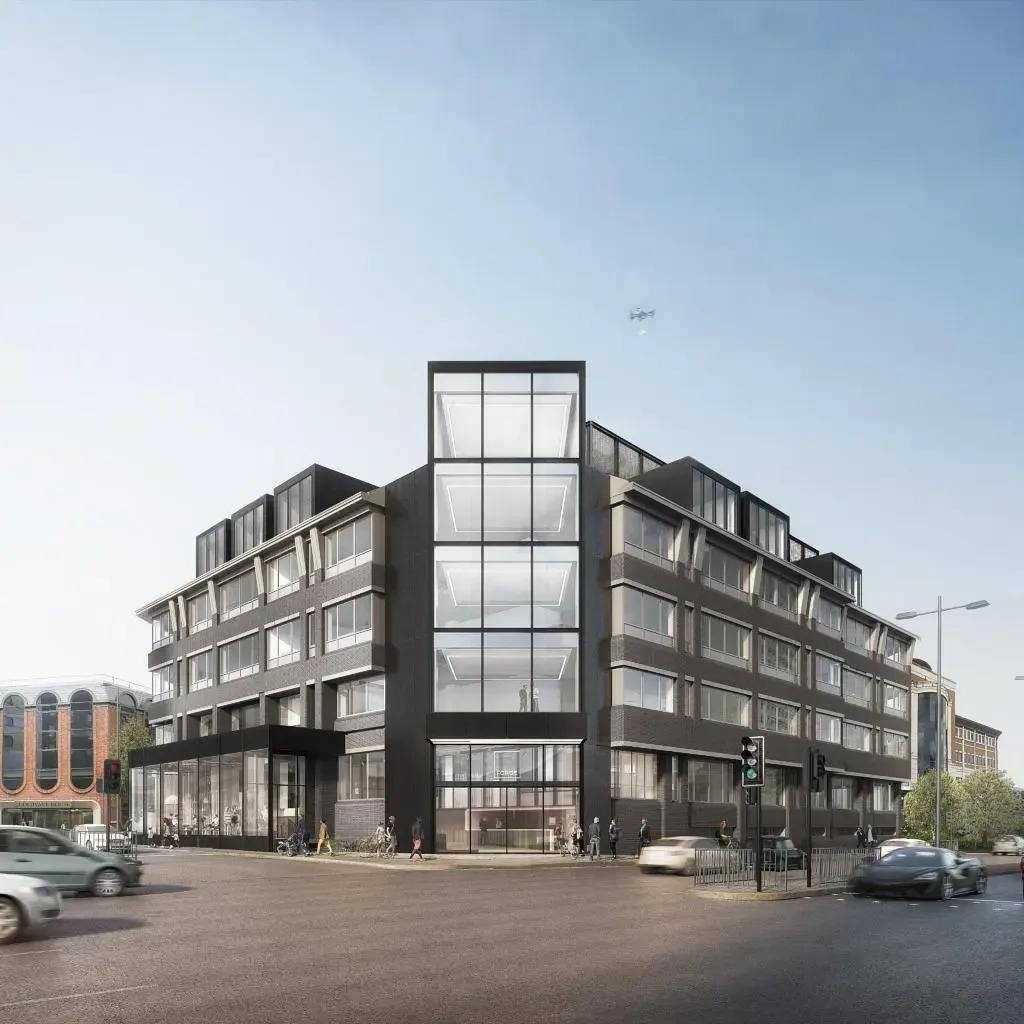

The Forge – Image 1 The Forge – Image 2
780 kW Diversified Electrical Demand
61% Load Optimisation
Multi-Tenant Ready BNO-Compliant Distribution
Coordinated Design Integrated Services Delivery
